TheSentry Seriesfrom Concord American Flagpole offers Cam Cleat system flagpoles in heights from20′ to 40′. The raised reinforced door frame design provides the security of an Internal Rope Halyard and Cam Cleat system with the reinforced strength necessary for moderate wind speed areas.

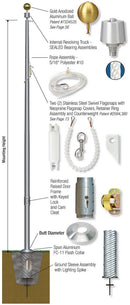

Standard Specifications• Patented, Heavy-Duty Gold Anodized Aluminum Ball• Cast Aluminum Revolving Truck with SEALED Stainless Steel Bearing Assemblies, Aluminum Spindle, Cast Brass Exit Bushing and Removable Hood• Complete External Halyard Assembly– Rope Halyard – 5/16″ #10 Wire Center Polyester– Two (2) Stainless Steel Flagsnaps– Two (2) Neoprene Flagsnap Covers• Cam Cleat• Reinforced Rasied Door Frame• Flush Mount Access Door with Lock and Keys• Spun Aluminum FC-11 Flash Collar• Galvanized 16-Gauge Corrugated Steel Ground Sleeve with Steel Grounding Spike
Reinforced Raised Door Frame Sentry Flagpoles are designed with a patented raised reinforced door frame consisting of a matched set of inner and outer castings. The frame castings are attached to the flagpole shaft using a series of eight (8) tamper-proof 5/16-18NC stainless steel bolts. The aluminum door is secured with two (2) tamper-proof 1/4-20NC screws.
